Details:

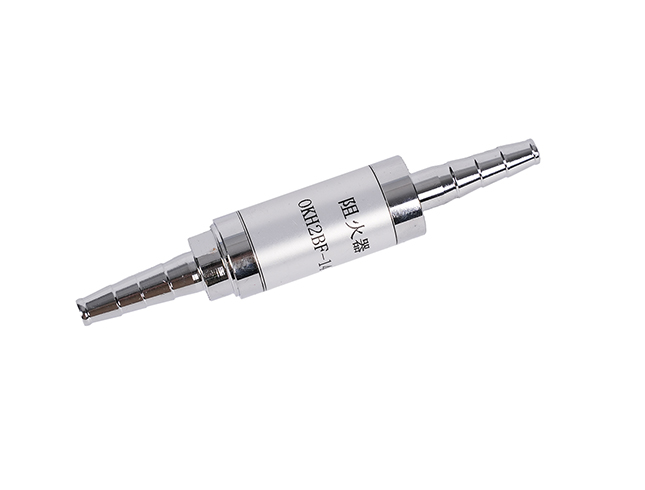

Flashback arrestor FA-14
Oxy-Hydrogen flashback arrestor is a kind of dry-type flashback arrestor which is made of international advanced high-technology nano ceramics anti-backfire tube. It can prevent the backfire from gas tube safely and continue to fire up to work after put out the flame. It is an ideal safe device for using hydrogen to work at present.
The flashback arrestor applies in welding, cutting and other similar workplaces to protect the operators' safety. It also can be applied in oxyhydrogen gas tube to be a safety device for keeping it from back-fire.
Compared with other domestic and overseas similar products, the flashback arrestor has a stable structure, light weight, good appearance, safe and reliable performance and other features. All kinds of technical index have been tested according to the standard advanced requirements and experiment methods of domestic and overseas similar products, and all the products have got access to delivery after pass factory test.
Technical Parameters:
Model
|
FA-14
|
Working medium
|
oxy-hydrogen gas, hydrogen gas, acetylene and so on
|
Opening pressure
|
0.005MPA (0.05Kg.f/cm2)
|
Flux
|
>1m3/h
|
Function
|
flame out the back-fire continuously
|
Connection method
|
either ends are leather hose joint (ф8), to install in the leather hose.
|
